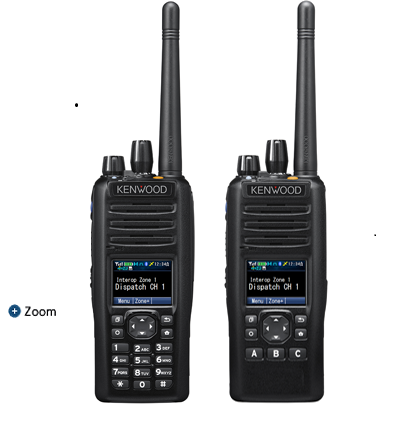

Portable Radios | ||||
---|---|---|---|---|
GENERAL | NX-5200 | NX-5300 | NX-5400 | |
Frequency Range | 136-174 MHz | Type 1: 450-520 MHz Type 2: 380-470 MHz |
RX: 763-776, 851-870 MHz TX: 763-776, 793-806, 806-825, 851-870 MHz |
|
Max. Channels Per Radio | 1024 (Up to 4000 channels with option) | |||
Number of Zones | 128 | |||
Max. Channels Per Zone | 512 | |||
Channel Spacing | Analog | 12.5/15/20/25*/30* kHz | 12.5/25* kHz | 12.5/25 kHz |
Digital | 6.25/12.5 kHz | 6.25/12.5 kHz | 12.5 kHz (6.25 kHz) | |
Power Supply | 7.5 V DC ±20% | |||
Battery Life (5-5-90/10-10-80 duty cycle) |
KNB-L1 (2,000mAh) | 10 hours / 6.5 hours | ||
KNB-L2 (2,600mAh) | 12.5 hours / 8.5 hours | |||
KNB-L3 (3,400mAh) | 17 hours / 11 hours | |||
Operating Temperature | -22°F to +140°F (-30°C to +60°C) | |||
Frequency Stability | ±2.0 ppm | ±1.0 ppm | ±1.5 ppm | |
Dimensions (W x Hx D) Projections Not Included | KNB-L1 (2,000mAh) | 2.28 x 5.47 x 1.52 in. (58 x 139 x 38.8 mm) | ||
KNB-L2 (2,600mAh) | 2.28 x 5.47 x 1.65 in. (58 x 139 x 41.8 mm) | |||
KNB-L3 (3,400mAh) | 2.28 x 5.47 x 1.86 in. (58 x 139 x 47.2 mm) | |||
Weight | KNB-L1 (2,000mAh) | 15.52 oz (440 g) | ||
KNB-L2 (2,600mAh) | 16.57 oz (470 g) | |||
KNB-L3 (3,400mAh) | 17.98 oz (510 g) | |||
RECEIVER | NX-5200 | NX-5300 | NX-5400 | |
Sensitivity | NXDN 6.25 kHz Digital (3% BER) | 0.20 μV | - | |
NXDN 12.5 kHz Digital (3% BER) | 0.25 μV | - | ||
P25 Digital (5%BER) | 0.25 μV | |||
P25 Digital (1%BER) | 0.40 μV | |||
Analog (12dBSINAD) | 0.25 μV | |||
Selectivity | P25 Digital | 60 dB | ||
Analog @ 12.5 kHz | 67 dB | 64 dB | ||
Analog @ 25 kHz | 73 dB | |||
Intermodulation | 75 dB | |||
Spurious Rejection | 85 dB | |||
Audio Distortion | 3% | |||
Audio Output Power | 500 mW/8 Ω (3% Distortion) / 1,000 mW /8 Ω (5% Distortion) | |||
TRANSMITTER | NX-5200 | NX-5300 | NX-5400 | |
RF Power Output Power | 5 to 1 W | 3 to 1 W | ||
Spurious Emission | -70 dB | |||
FM Hum & Noise | Analog @ 12.5 kHz | 40 dB | ||
Analog @ 25 kHz | 45 dB | |||
Audio Distortion | 2% | |||
Emission Designator | 16K0F3E, 11K0F3E, 8K10F1E, 8K10F1D, 8K10F1W, 8K30F1E, 8K30F1D, 8K30F7W, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D | 16K0F3E, 14K0F3E, 11K0F3E, 8K10F1E, 8K10F1D, 8K10F1W, (8K30F1E, 8K30F1D, 8K30F7W, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D) |
